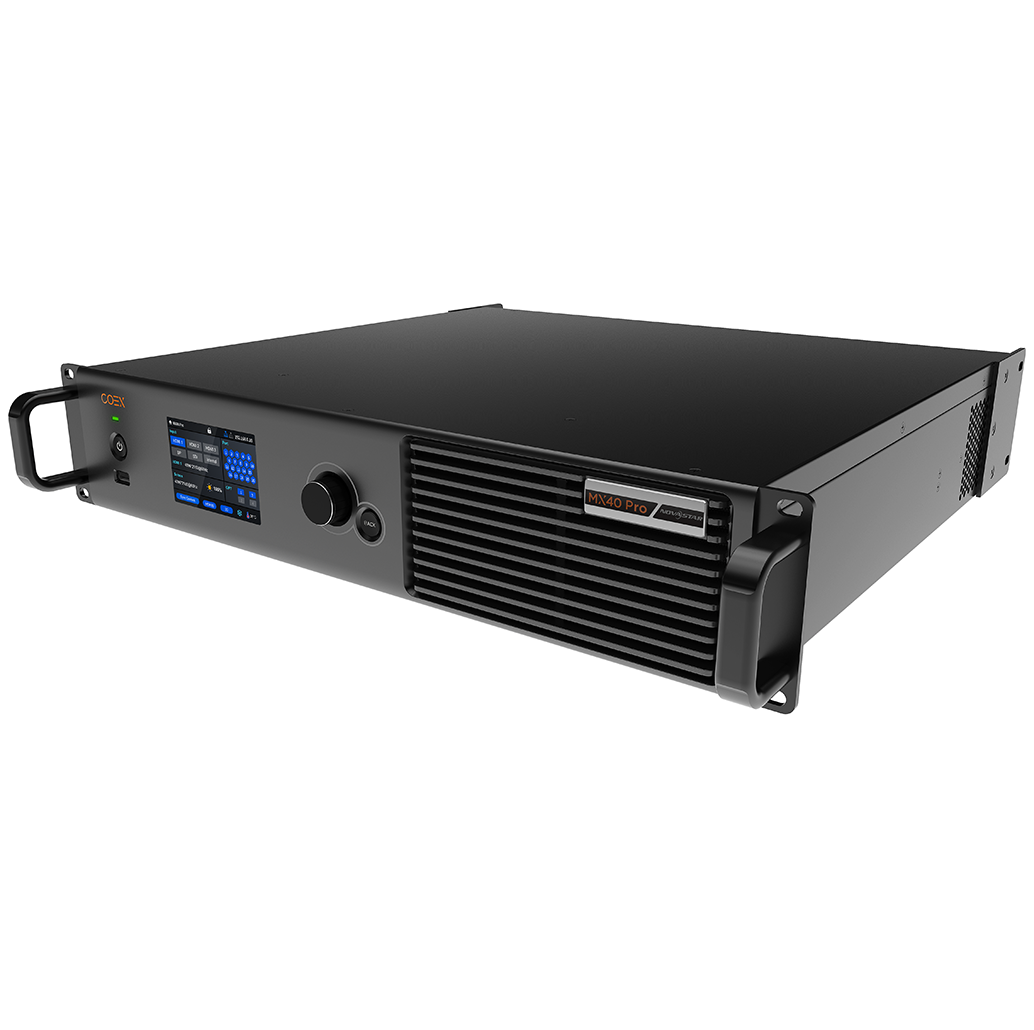

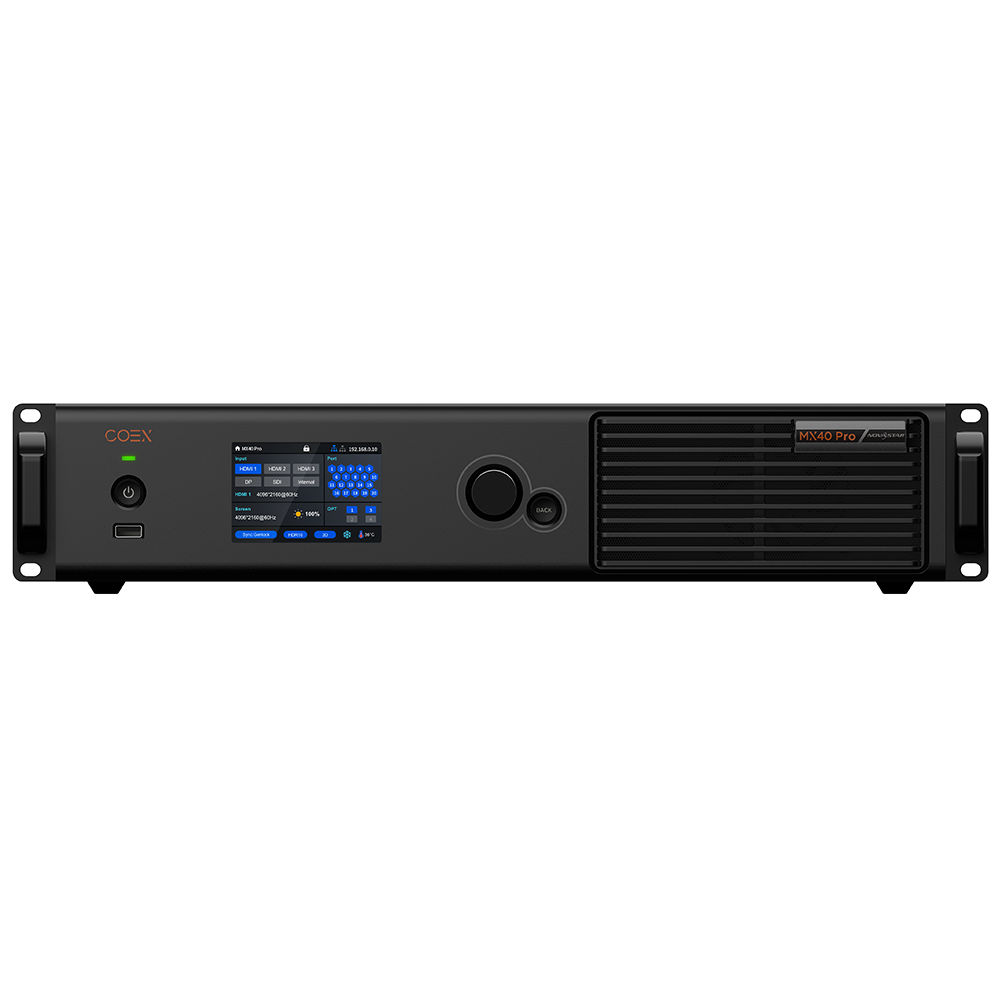

NovaStar™ MX40 Pro 4K LED video wall controller

The NovaStar™ MX40 Pro is a high performance 4K LED video wall controller. It features a range of input and  output connectors, including HDMI 2.0, DP 1.2, and 12G-SDI, alongside 20 Ethernet output ports and 4x 10G optical ports. It has a powerful loading capacity of up to 9 million pixels. It can also work with the brand new software VMP ( Vision Management Platform) to provide a better operation and control experience.

Features:

● 14CH precise color calibration, fine adjustment to hue, saturation and brightness

● Support HDR

● 3D （Three Dimensional ）

● Support colors replacement

● Real-time analysis and dynamic booster to improve picture quality and lower power consumption

● Low latency

Packing list in details:

●  1 * Navastar MX40 Pro LED video processor

Dimension : 482.6*94.2*467.0mm

N.W.: 7.5KGS

G.W.: 10.5KGS

Carton size: 660.0*570.0*210.0mm

Inner Kraft paper cardboard box for accessories: 408.0*290.0*50.0mm

Specification

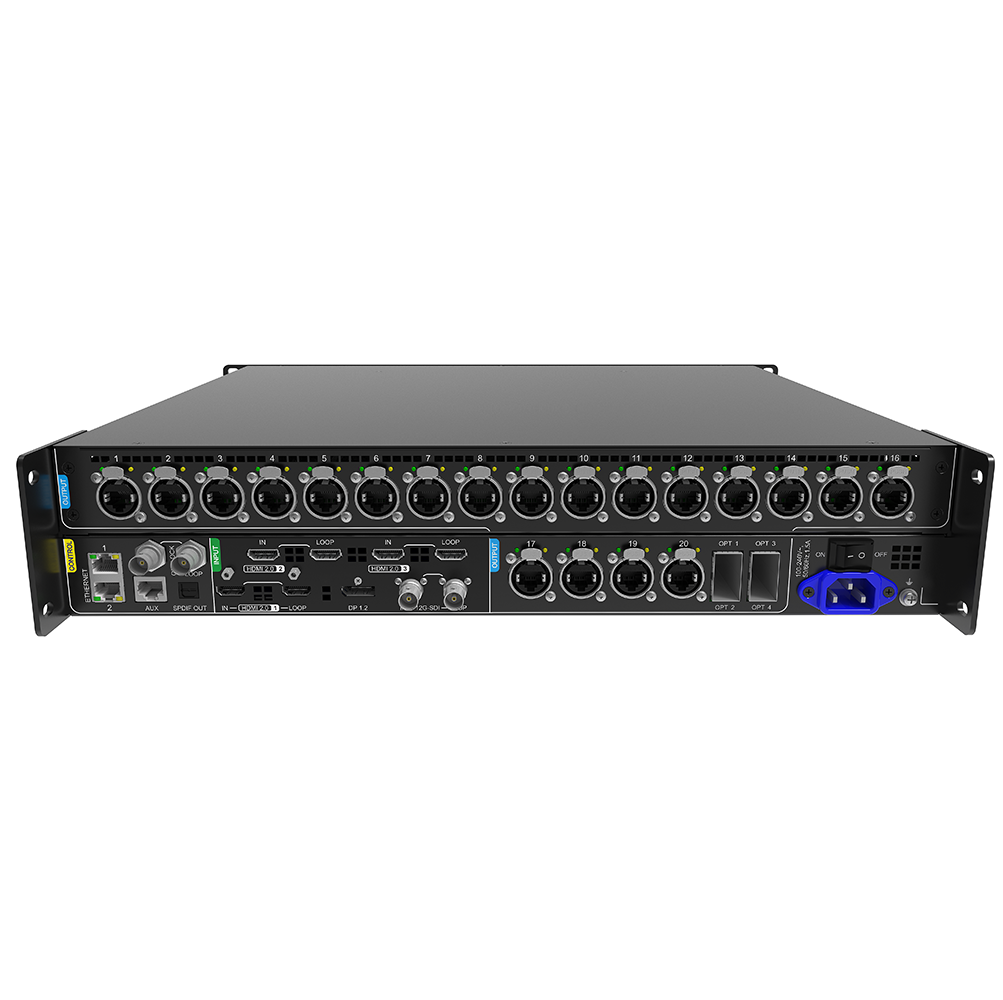

Inputs
− 3x HDMI 2.0 (with loop through)
− 1x DP 1.2
− 1x 12G-SDI (with loop through)

Outputs
− 20x LED Outputs, Gigabit Ethernet ports, loading capacity up to 9 million pixels
− 4x Optical Outputs, 10G optical ports
− 1x SPDIF digital audio port

Controls
− 1x Genlock signal input (with loop through)
− 2x Ethernet ports
− 1x Auxiliary port

Loading Capacity

Max. pixels per LED output: when at 60Hz, 659,722 pixels at 8 bit; 494,792 pixels at 8 bit; 329,861 pixels at 8 bit,

Max. total pixels: up to 9 million pixels

Max. resolution: 4096 x 2160 @ 60Hz
Max. output width/height: 10240 pixels x 10240 pixels
