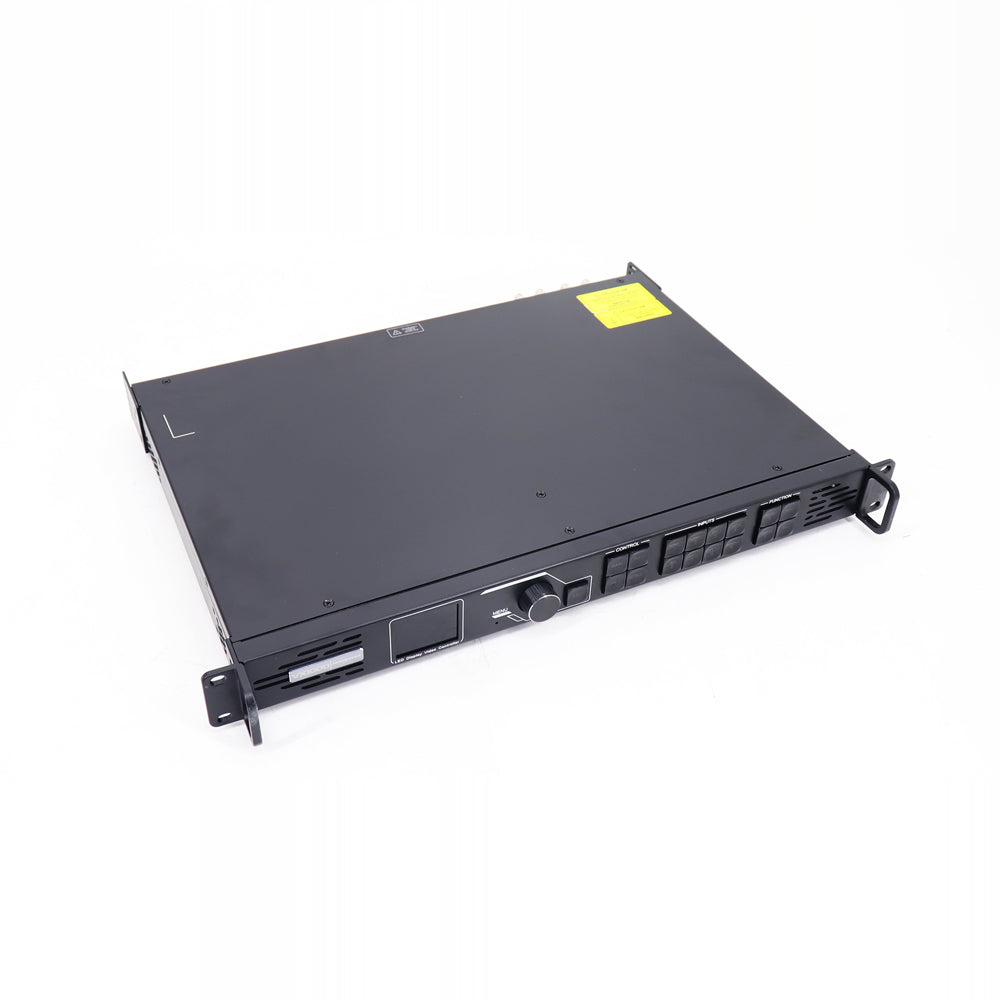

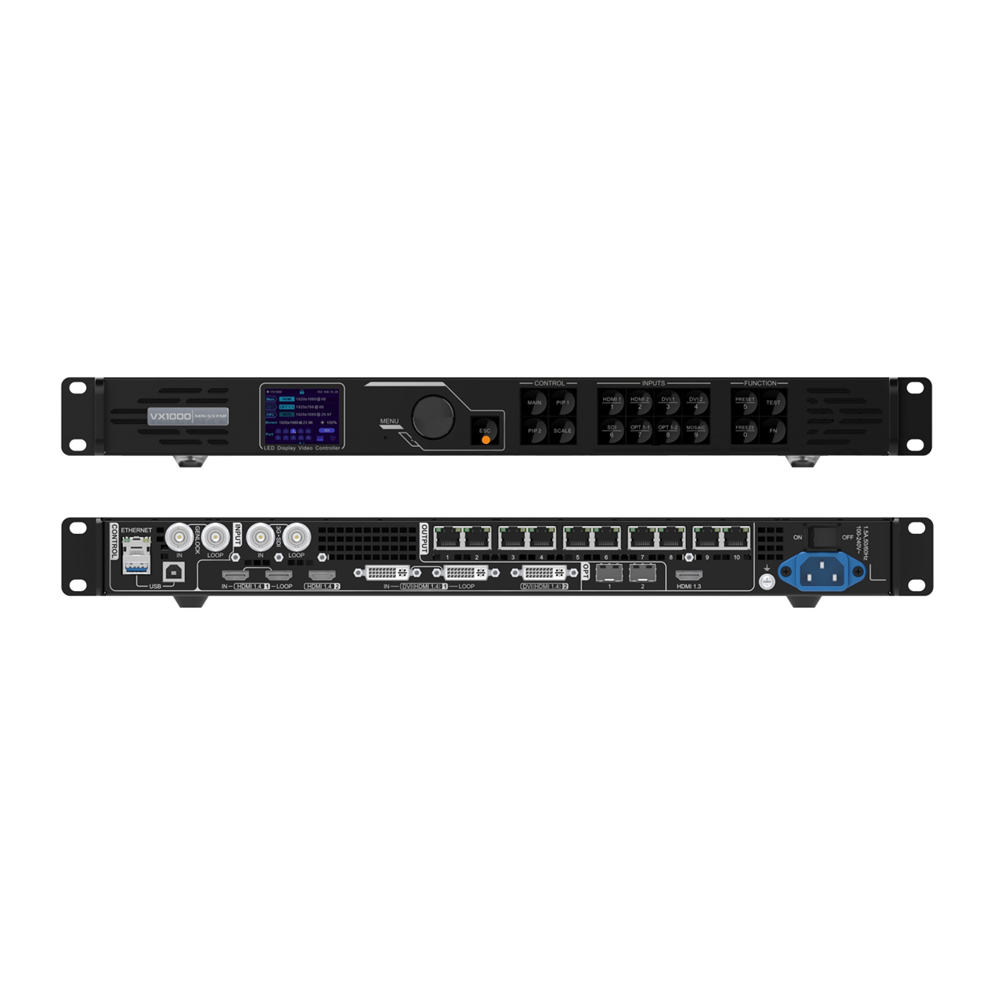

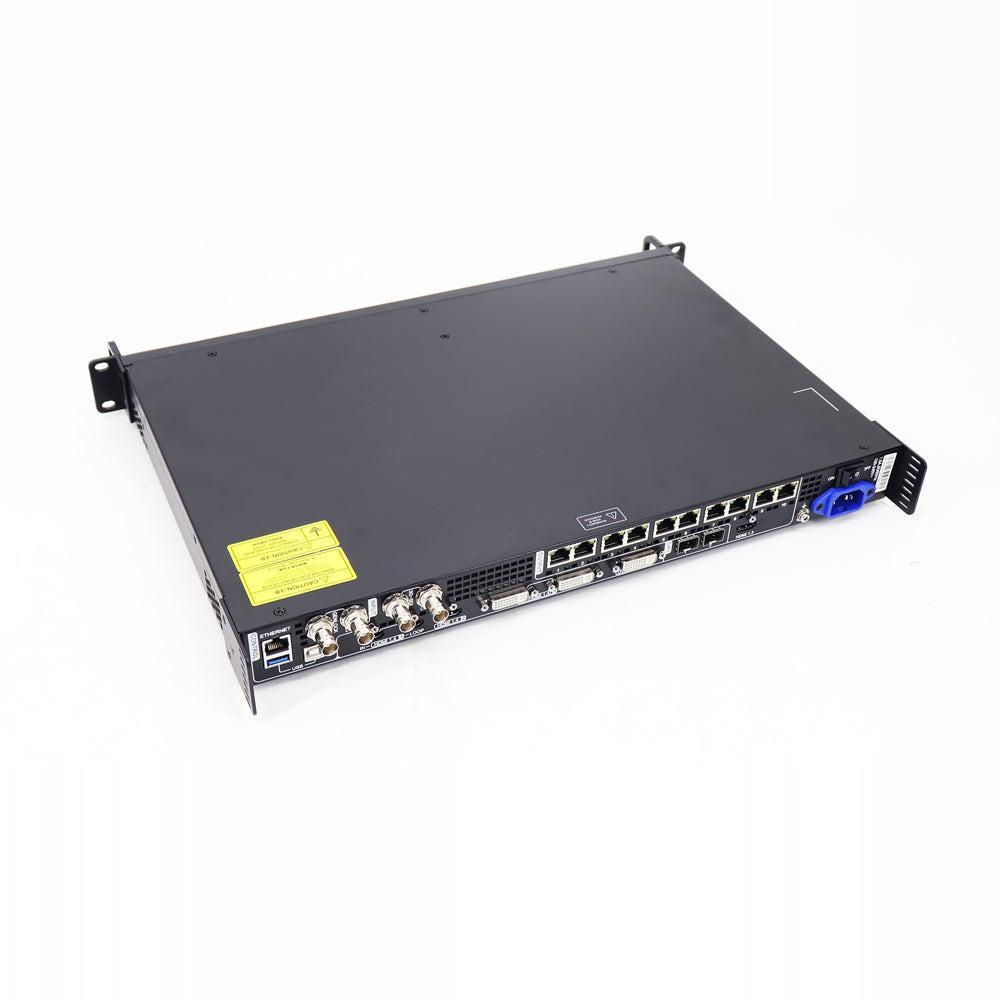

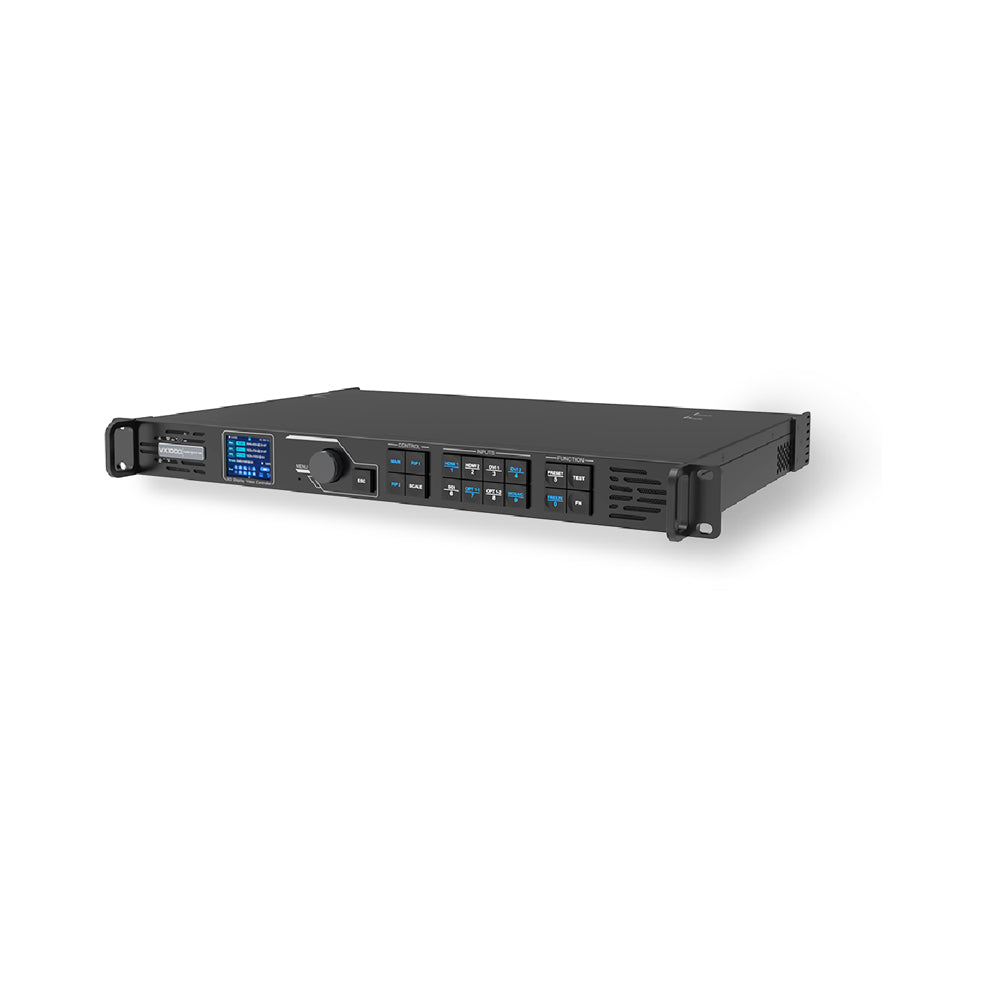

NovaStar™ VX600 All-in-one LED video wall controller

The NovaStar™ VX600 is a high performance All-in-one LED video wall controller that integrates the functions of both video processing and controlling into one box.



It provides 6 Ethernet output ports and supports 3 kinds of different working modes, including video control , fiber conversion and bypass. A single unit can manage up to 3.9 million pixels that can fit the needs of ultra wide and ultra high LED video walls.





Features:



● Powerful video processing capacity

● Support brightness and hue calibration

● Support picture and video quality fine adjustment, including brightness, contrast ratio, saturation ,hue and gamma adjustment

● Support Audio output

● 3D (Three Dimensional ) presentations

● Low latency

● Support V-Can, NovaLCT and button controls

● Genlock

● Supports up to 3x layers

● Support up to 10 user-defined presets

● Supports video output synchronization

● Support hot back-up

● Maximum 4 levels of Cascading



Packing list in details:

●  1 * NovaStar™ VX600 LED video wall controller

Dimension : 483.6*351.2*50.1mm

N.W.: 4.0KGS

G.W.: 6.8KGS

Flight case size: 521.0*517.0*102.0mm

Outer Carton size: 565.0*450.0*175.0mm





Specification

Inputs

− 1x HDMI 1.3 (IN & LOOP)

− 1x HDMI 1.3

− 1x DVI (IN & LOOP)

− 1x DVI

− 1x 3G-SDI (IN & LOOP)

− 1x 10G optical fiber port (OPT1)



Outputs

− 6x Gigabit Ethernet ports

Maximum loading capacity of 3.9 million pixels, maximum width of 10,240 pixels and a maximum height of 8192 pixels per unit.

− 2x Fiber outputs

OPT 1 copies the output on 6 Ethernet ports. OPT 2 copies or backs up the output on 6 Ethernet ports.

− 1x HDMI 1.3 Output



Loading Capacity



Max. total pixels: up to 3.9 million pixels

Max. resolution: max. 1920×1200@60Hz

Max. output width/height: 10240 pixels x 8192 pixels



Input voltage: AC 100-240V, 50/60HZ

Power consumption: 28 watts
